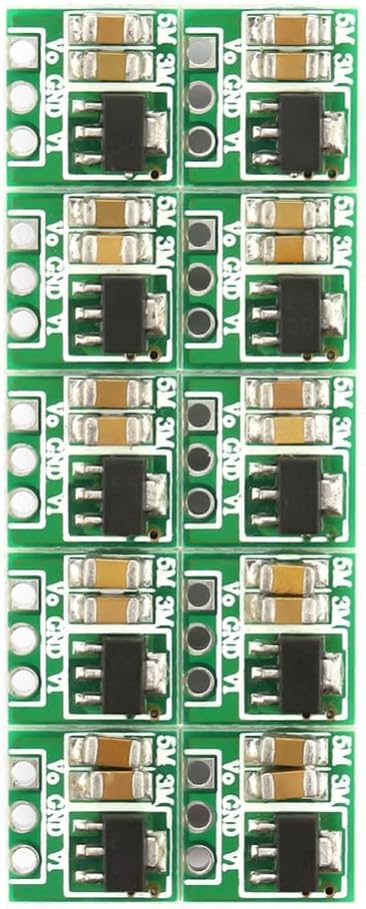

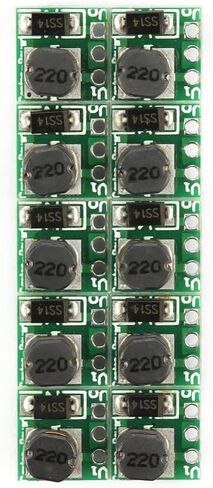

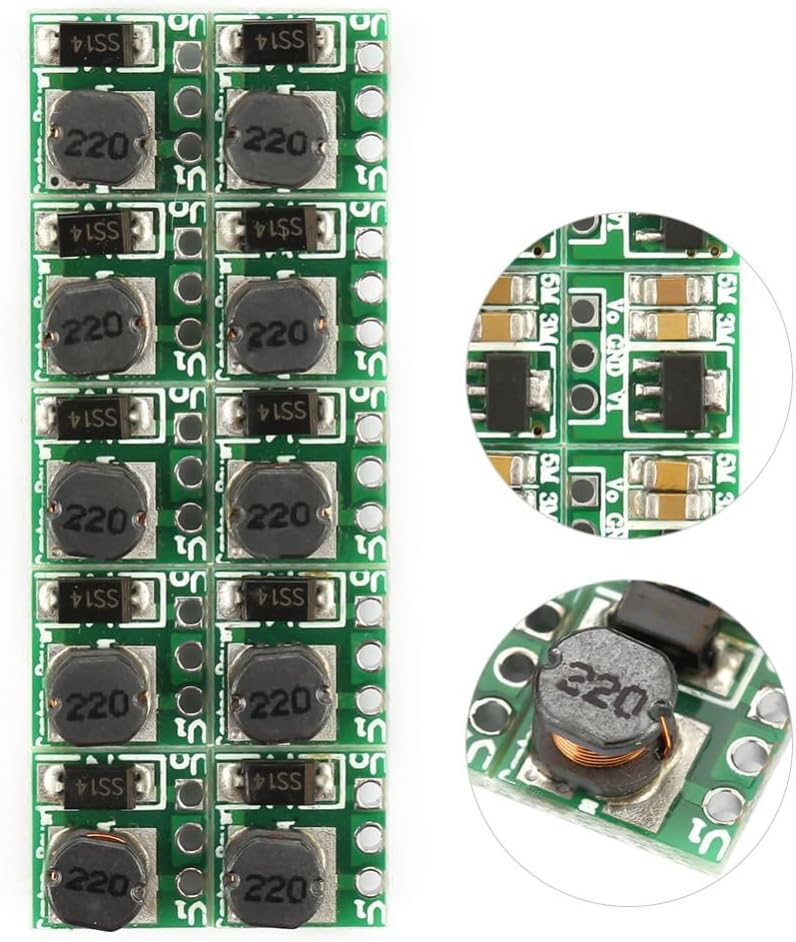

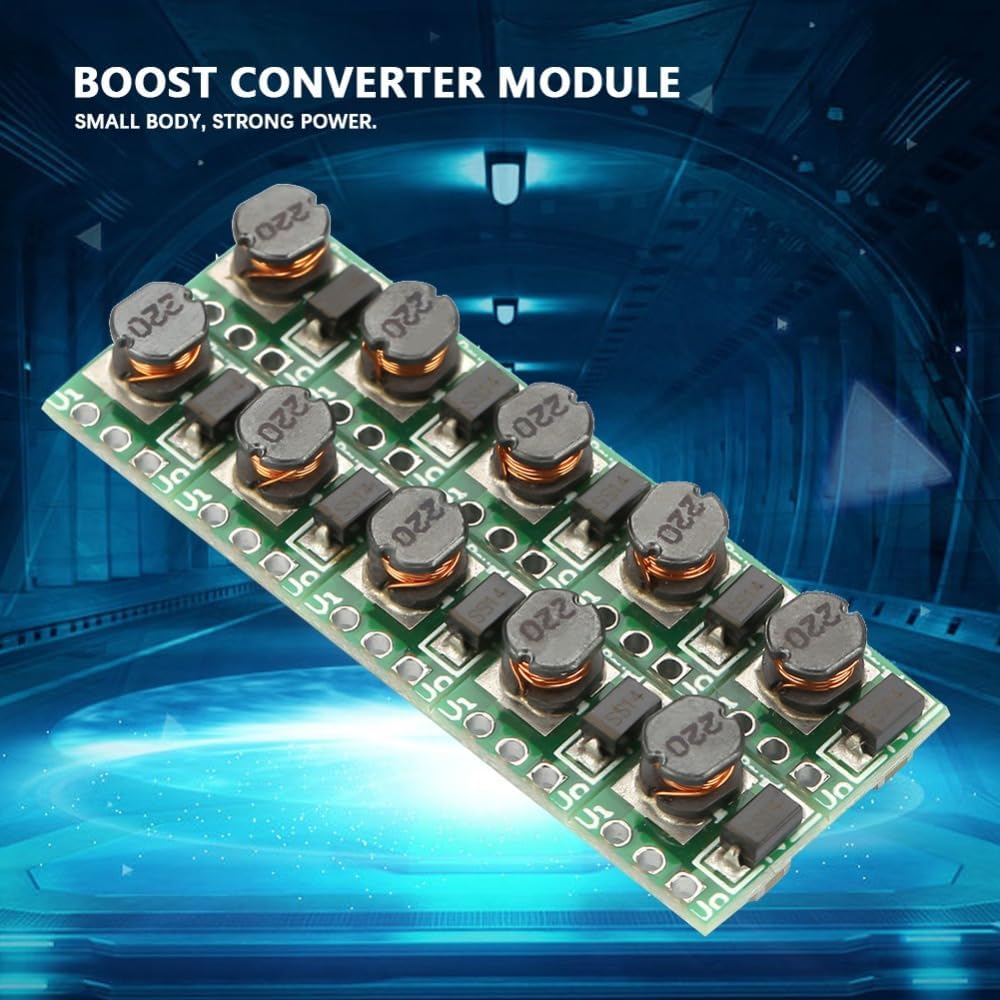

This DC-DC boost converter module efficiently steps up low input voltages including 1.5V, 1.8V, 2.8V, 3V, 3.3V, 3.7V, and 4.2V to a stable 5V output. Ideal for low-power applications, it ensures your devices receive consistent power with up to 85% conversion efficiency. The compact design allows easy integration into DIY electronics projects, portable chargers, and battery-powered systems
Connect your input source to the module's terminals, then attach your output device. It automatically starts up at 0.8V and delivers stable 5V power across a range of input conditions. Suitable for use with solar panels, old batteries, or low-voltage power sources where standard USB or regulated 5V is required
Specification:
Model: T64
Input Voltage:0.9-5V
Output Voltage:5V
Input Current(maximum): 480mA
Start Voltage: 0.8V, Output Current: 7MA
Input Voltage: 1-1.5V, Output Voltage: 5V, Output Current: 40-100MA
Input Voltage: 1.5-2V, Output Voltage: 5V, Output Current: 100-150MA
Input Voltage: 2-3V, Output Voltage: 5V, Output Current: 150-380MA
Input Voltage: >3V, Output Voltage: 5V, Output Current: 380-480MA
Work Frequency: 150KHZ

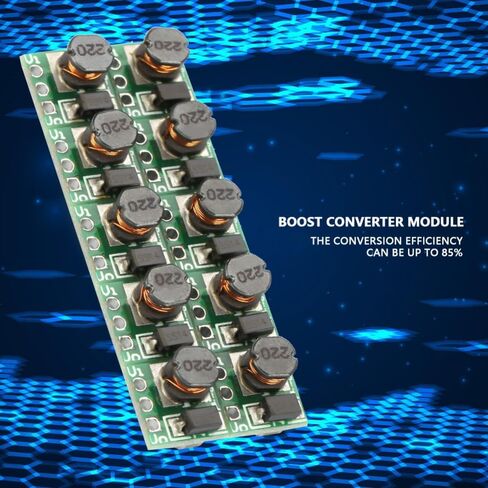

Conversion Efficiency: 85%
Weight: Approx. 13g / 0.5oz
Size: Approx. 11 * 10.5 * 7.5mm / 0.4 * 0.4 * 0.3in
Color: As picture shown
Package List:
10 x Boost Converter Module
Note:
1 Input voltage can not be greater than the nominal voltage, otherwise it will burn the module
2 Input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage
3 Output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage
