مميزات خاصة

Connector Type: SMA male; Antenna Material: Stainless steel; Connector material: Copper; Section numbers: 8; Antenna Length: About 70.8 cm/27.87 inch(extended); Antenna diameter: 8mm
Impedance: 50 ohm; Working voltage: 335V max (effective value) ; Withstand voltage: 1000V rms (minimum value at sea level); Inner conductor contact resistance: ≤3 mΩ; Outer conductor contact resistance: ≤2 mΩ; Insulation resistance: ≥5000 MΩ; Insertion loss: ≤0.15 dB/6GHz
Application: Radio, boombox antenna, TV, SDR, FM AM stereo receiver, DAB
Note: The signal will be different as the number of antenna sections is different. The longer the length is, the better the signal will be received.
Package: 2 x SMA male telescoping antenna(Net Weight:42.1g)

وصف

Product Details：

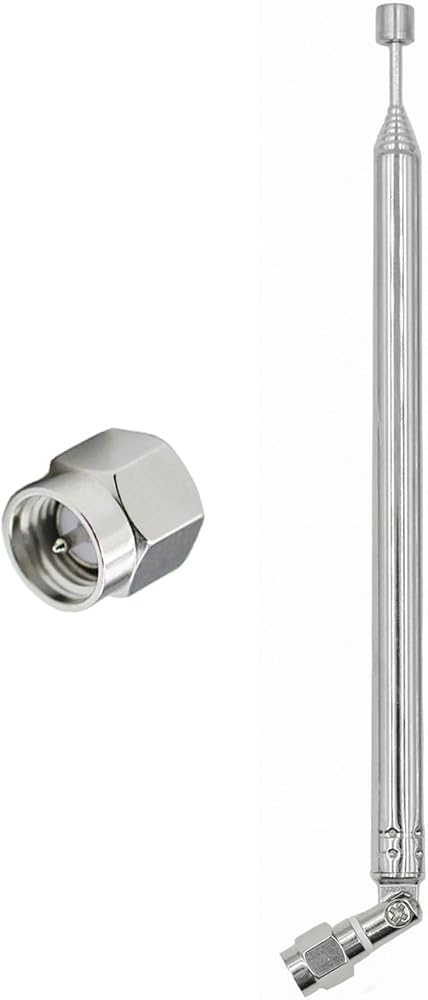

SMA male radio signal telescoping antenna
Connector type: SMA male
Connector material: Copper; Body material: Stainless steel
Total length: 70.8 cm/27.87 inch
Antenna diameter: 8mm
Section numbers: 8
Impedance: 50Ω
Working voltage: 335V max (effective value)
Withstand voltage: 1000V rms (minimum value at sea level)
Inner conductor contact resistance: ≤3 mΩ
Outer conductor contact resistance: ≤2 mΩ
Insulation resistance: ≥5000 MΩ
Insertion loss: ≤0.15 dB/6GHz
Application: Radio, boombox antenna, TV, SDR, FM AM stereo receiver.
Package: 2 x SMA male AM FM replacement antenna
Weight: 42.1g
