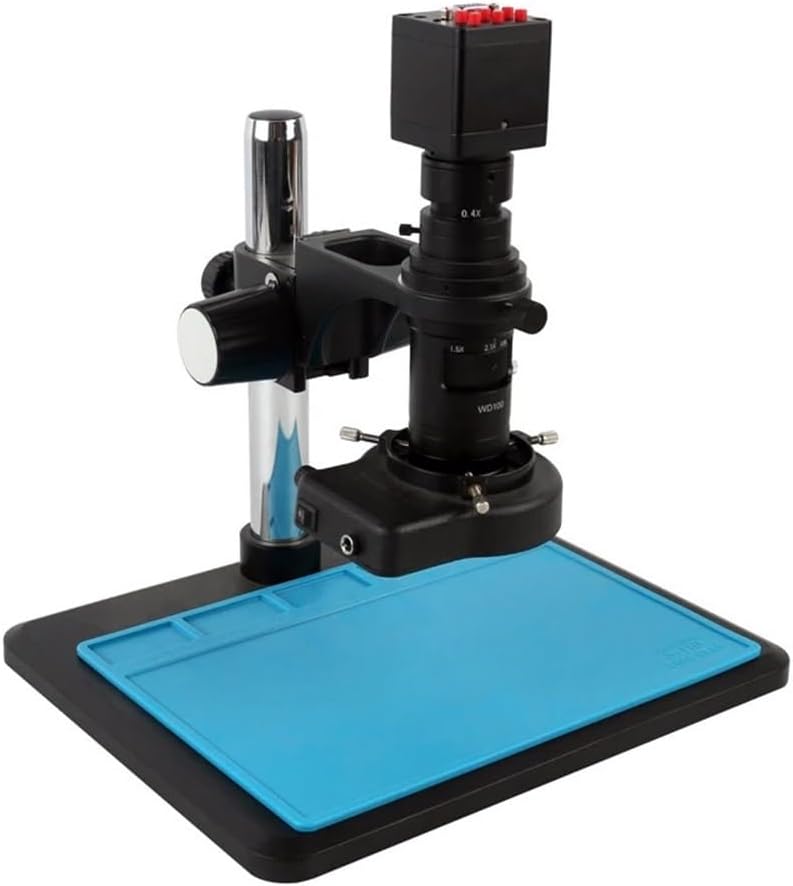

HDMI VGA video microscope camera
The color of the camera is black
The product uses the 307 CMOS sensor, which solves the problem of the dim display of the old camera due to insufficient light.
Improve image quality and digital noise reduction, increase color reproduction and 1080P output, support more languages, English, Chinese, Japanese, Spain, Russian, very suitable for phone PCB SMD soldering.
1080P Feature:
High Quality, High Resolution, Clear Images
1/2.8" 307 CMOS
1080P 1920*1080 1024*768 @60F/S Video Camera
HDMI VGA Video Model
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
Specification:
Model: Camera with HDMI VGA two output
Color: Black
Sensor: 1/2.8 inch 307
Image Resolution: 1920*1080 1024*768 (for HDMI), 1920*1080 1024*768 (for VGA)
Video Resolution: 1920*1080 1024*768 @ 60F/S
Basic Function:Brightness(0-100%,Adjustable), Contrast(0-100%,Adjustable), Saturation(0-100%,Adjustable), White balance(One key white balance,Manual balance)
Image quality adjustment:Exposure(Automatic Exposure, Manual Exposure), Color temperature(Red, Blue, Green, Adjustable)
Freeze: Support
Mirroring: Support
Language: English/Chinese/Japanese/Spain/Russian
Power supply:12V 1A
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Appearance size:50*50*58mm
Working distance: 100mm -170mm,90mm -110mm
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
br/> Suit for the dia of the lens: 30mm-160mm
200X Working distance:100mm -170mm
500X Working distance:90mm -110mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X on the displ
