1. [PRECISE BEAM ANGLE]: Choose from 60° or 120° beam angles for targeted lighting applications.
2. [OPTIMAL DESIGN]: Aspheric surface design with a flat convex lens for enhanced light distribution.
3. [COMPACT SIZE]: Compact with a lens diameter of 44mm and a reflector cup diameter of 50mm.
4. [FULL PACKAGE]: Includes a 44mm lens, 50mm reflector cup, and fixed bracket for a complete lighting solution.
5. [UNIQUE STRUCTURE]: Reflective cup and fixed bracket design for stable and efficient light output.

Specification:
Item Type: LED Lens + Reflector + Fixed Bracket
Beam Angle: 60°, 120° (Optional)

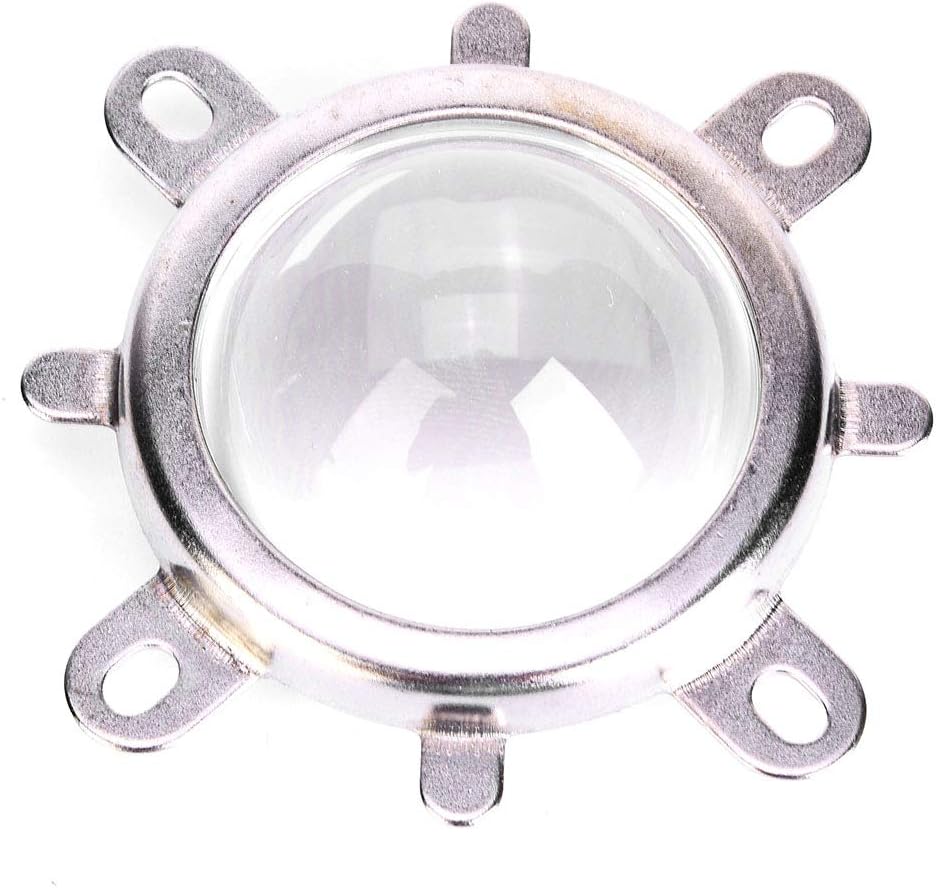

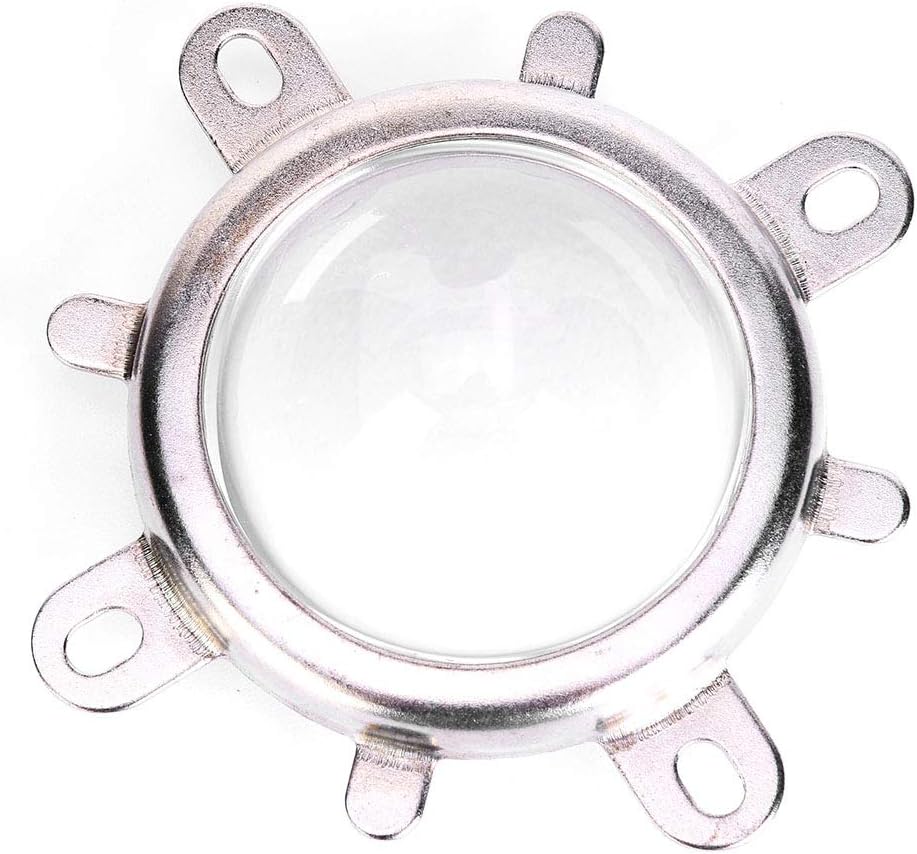

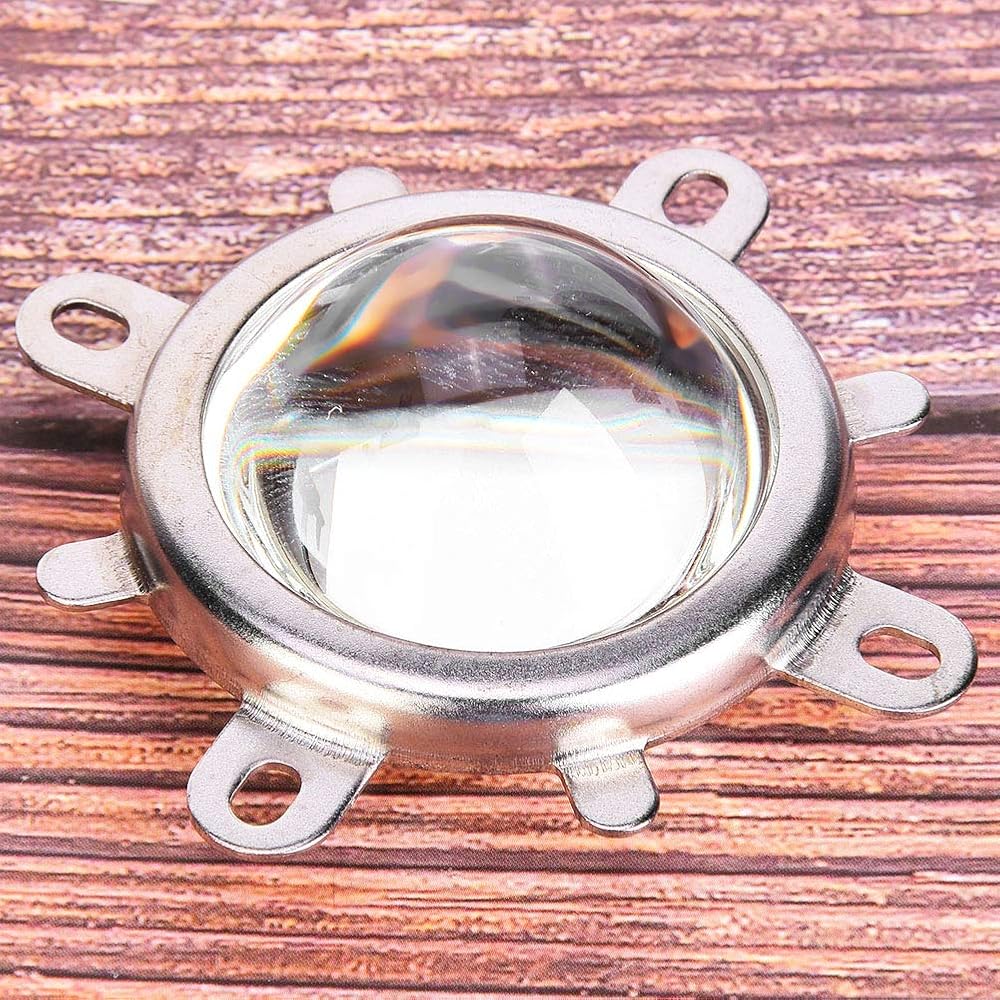

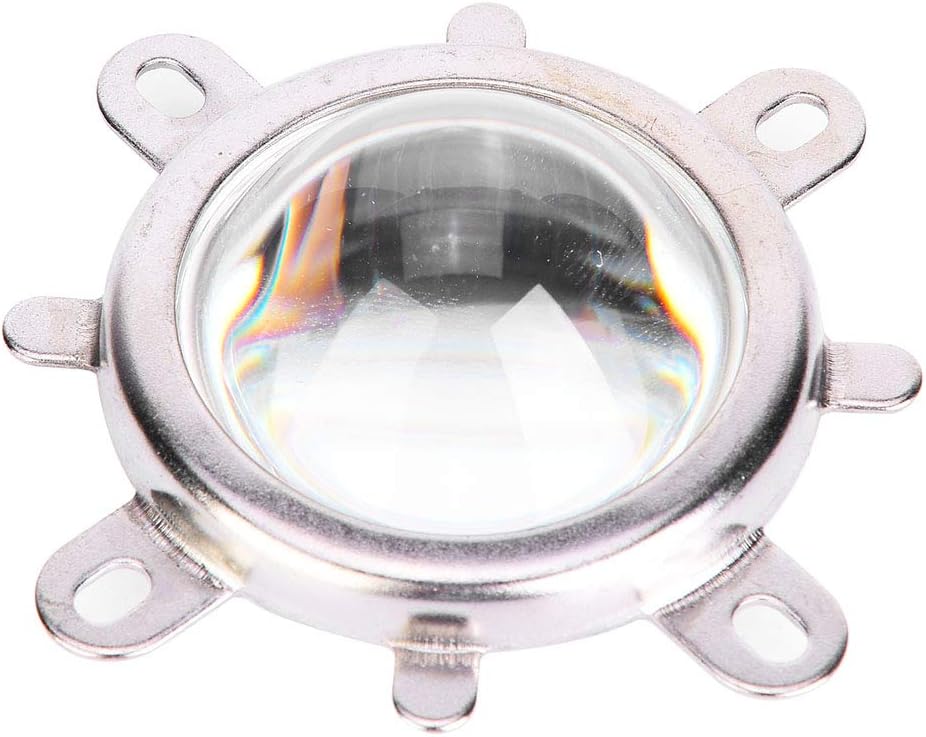

Lens:
Lens Diameter: Approx. 44mm / 1.73in
Lens Inner Diameter: Approx. 40mm / 1.57in
Lens Height: Approx. 19mm / 0.75in(60°) , 11.2mm / 0.44in(120°)
Lens Thickness: Approx. 3mm / 0.12in
Lens Width: Approx. 2mm / 0.08in
Transmittance: >95%
Lens Material: High-Temperature Optical Glass (Temperature Resistance: -30+120℃)
Product Design: Aspheric Surface Design (Flat Convex Lens)
Reflector Cup:
Reflective Cup Diameter: Approx. 50mm / 1.97in
Height: Approx. 11mm / 0.43in
Lower Part Size: Approx. 26.3x26.3mm / 1.04 x 1.04in
Material: Plastic Electroplating
Bracket:
Diameter: Approx. 77mm / 3.03in (Including Fixing Screws), 53mm / 2.09in (Excluding Fixing Screws)
Thickness: Approx. 6.5mm /0.26in

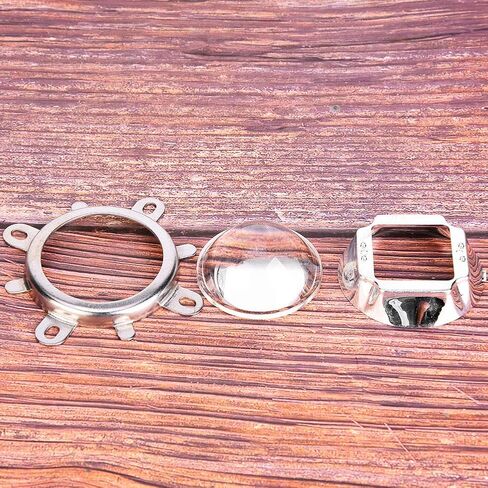

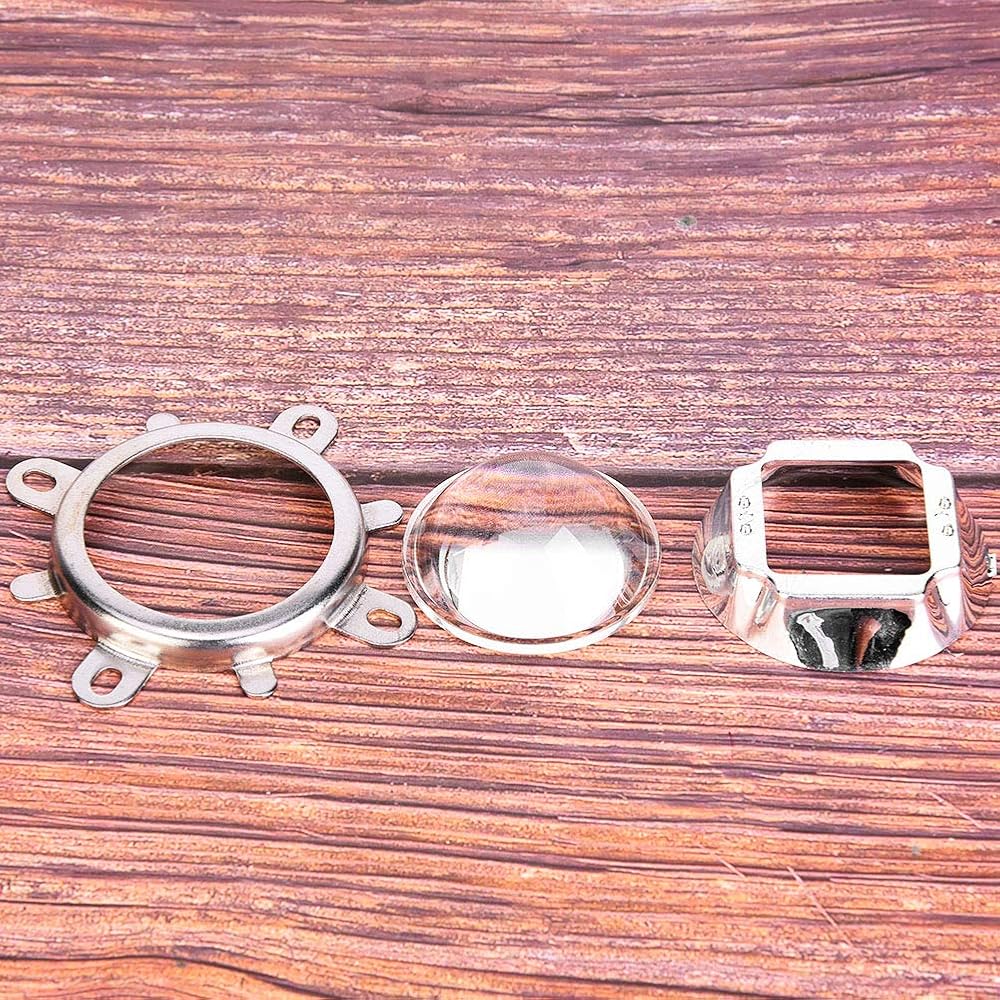

PackageList:
1 x 44mm Lens
1 x 50mm Reflector Cup
1 x Fixed Bracket
