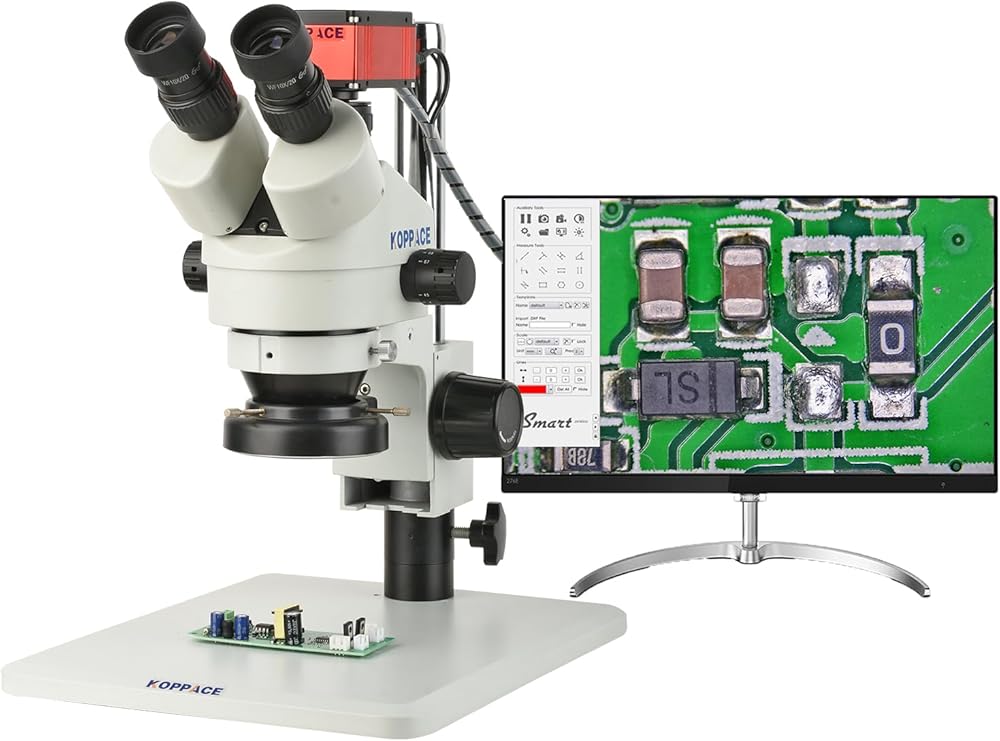

Model KP-H1700
Optical Magnification 3.5X-90X
Electronic Magnification 27X-174X
Field of View 7.87mm-50.62mm
Eyepiece High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10

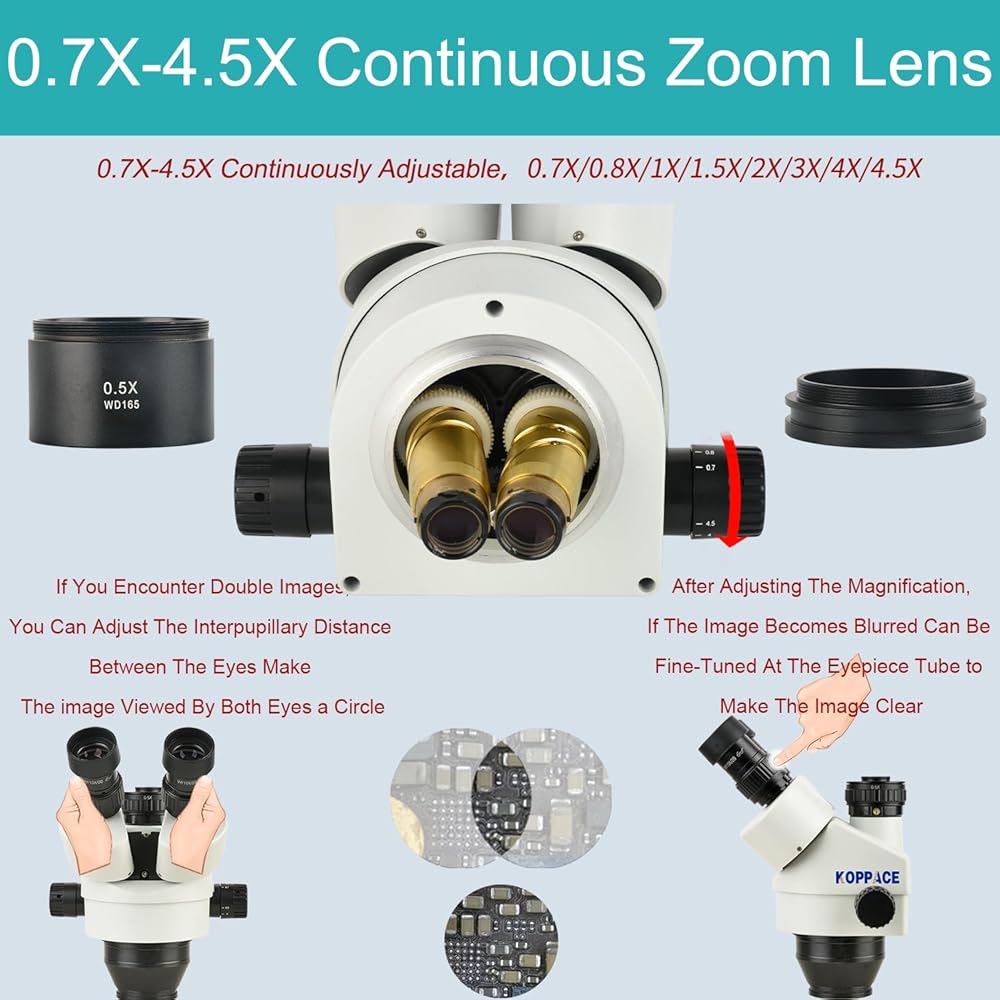

Objective Lens 0.7X-4.5X Continuous Amplification
Auxiliary Lens 0.5X/165mm,1X Oil Proof Mirror
Working Distance 100mm-165mm

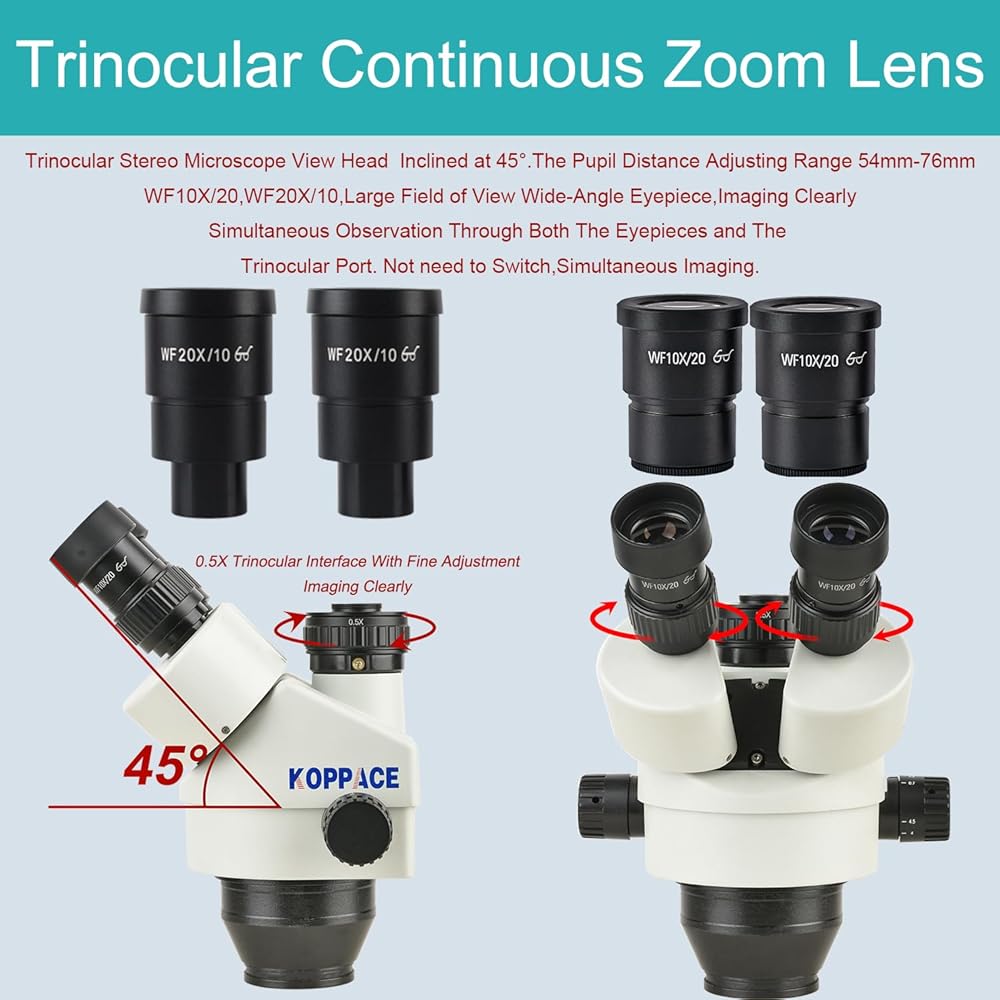

Viewing Head Trinocular Stereo Microscope View Head Inclined at 45°.
The Pupil Distance Adjusting Range 54mm-76mm

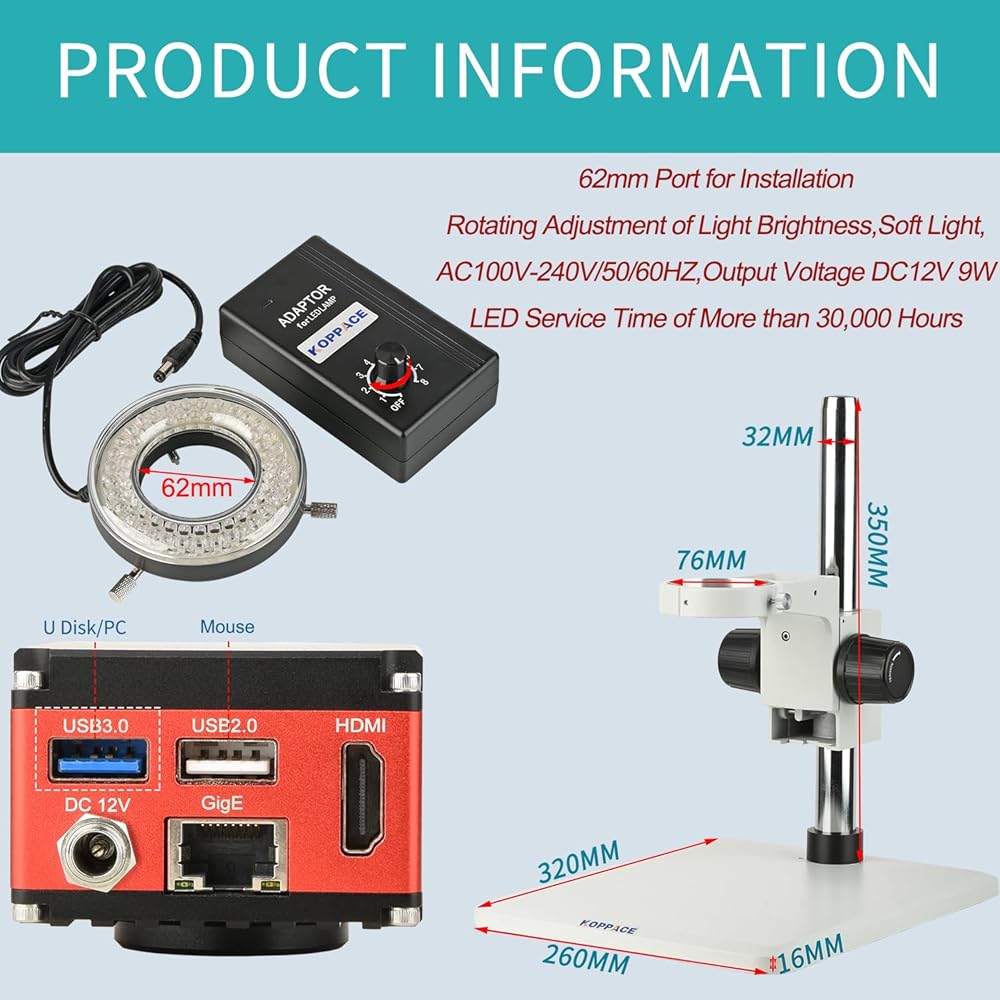

Bracket Column Height 350mm,Column Diameter Φ32mm,Base Size:320mmX260mmX16m,Lens Frame Diameter 76mm.
Trinocular Interface 0.5X CTV（Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.）
LED Light Source 62mm Inner Diameter Microscope LED Ring Light Source 64 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 9W

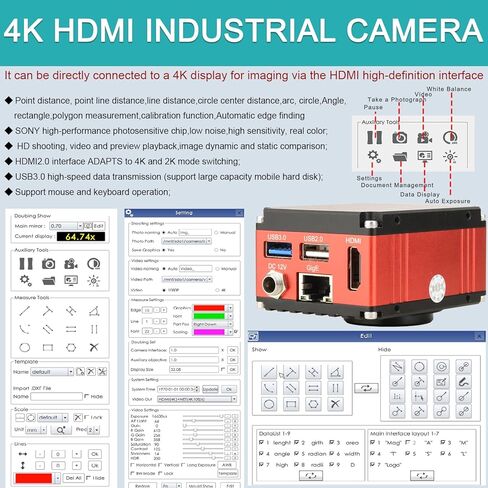

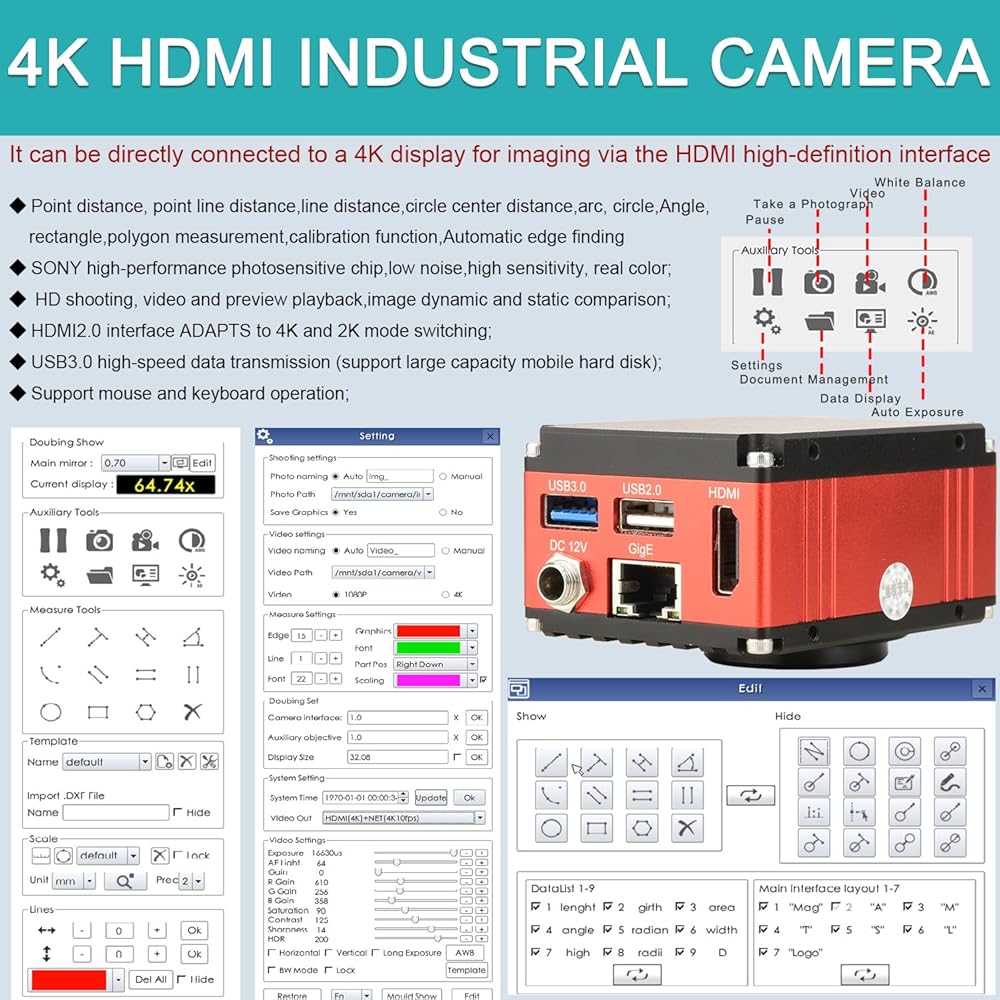

Pixel 8.3 Million Pixels
Output Method HDMI、GigE、USB3.0
Sensor 8.3M 1/1.8"CMOS
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

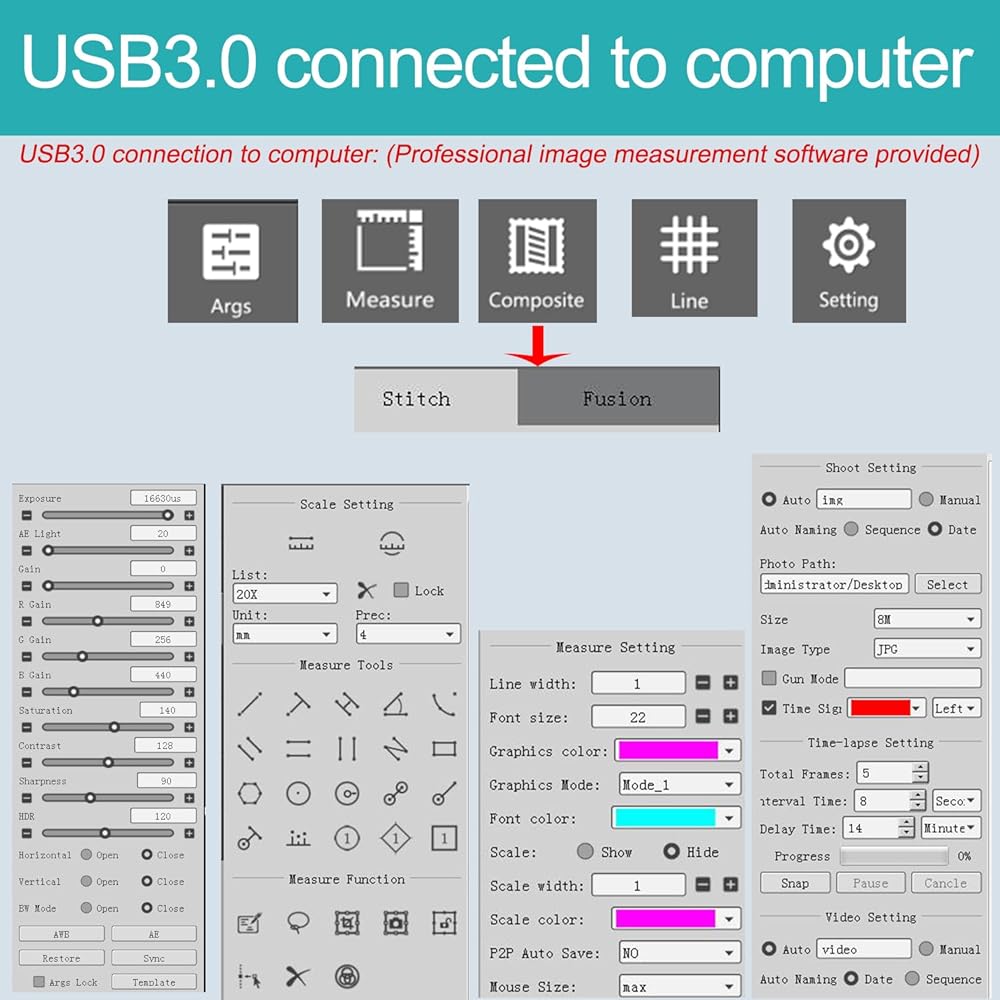

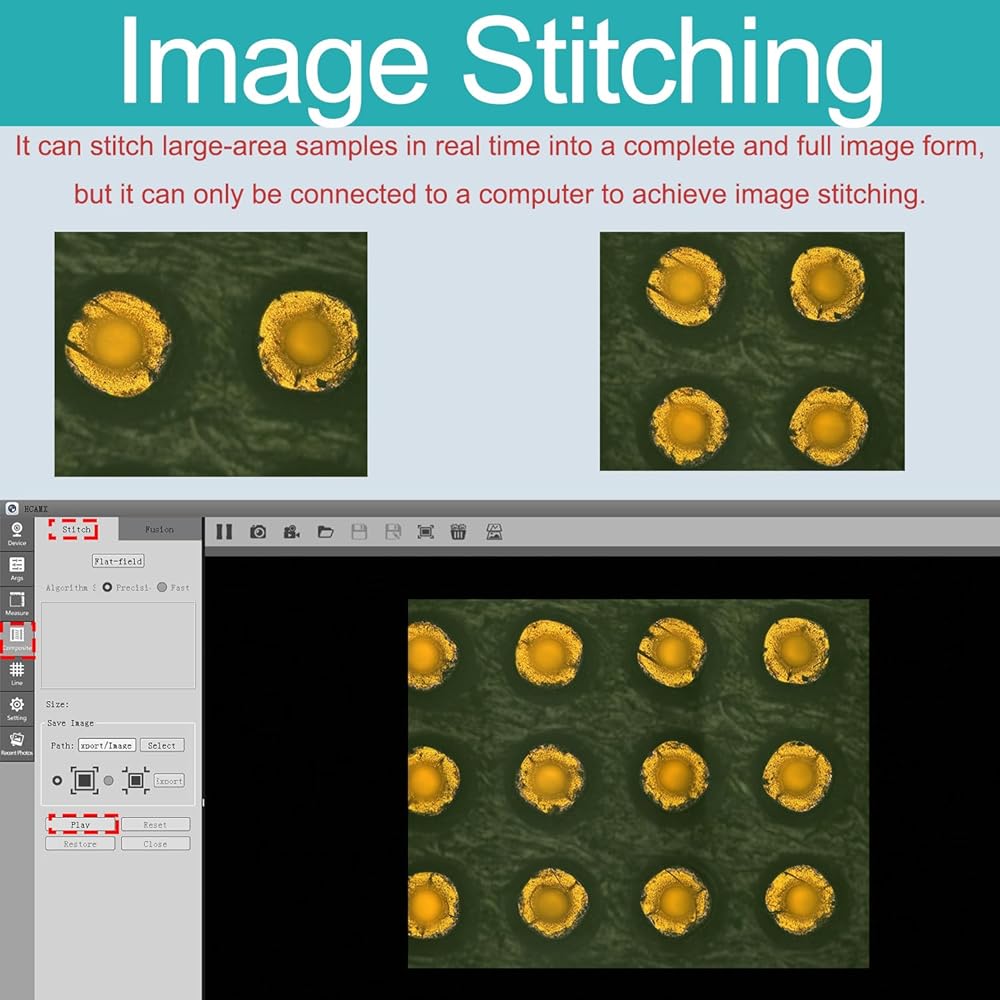

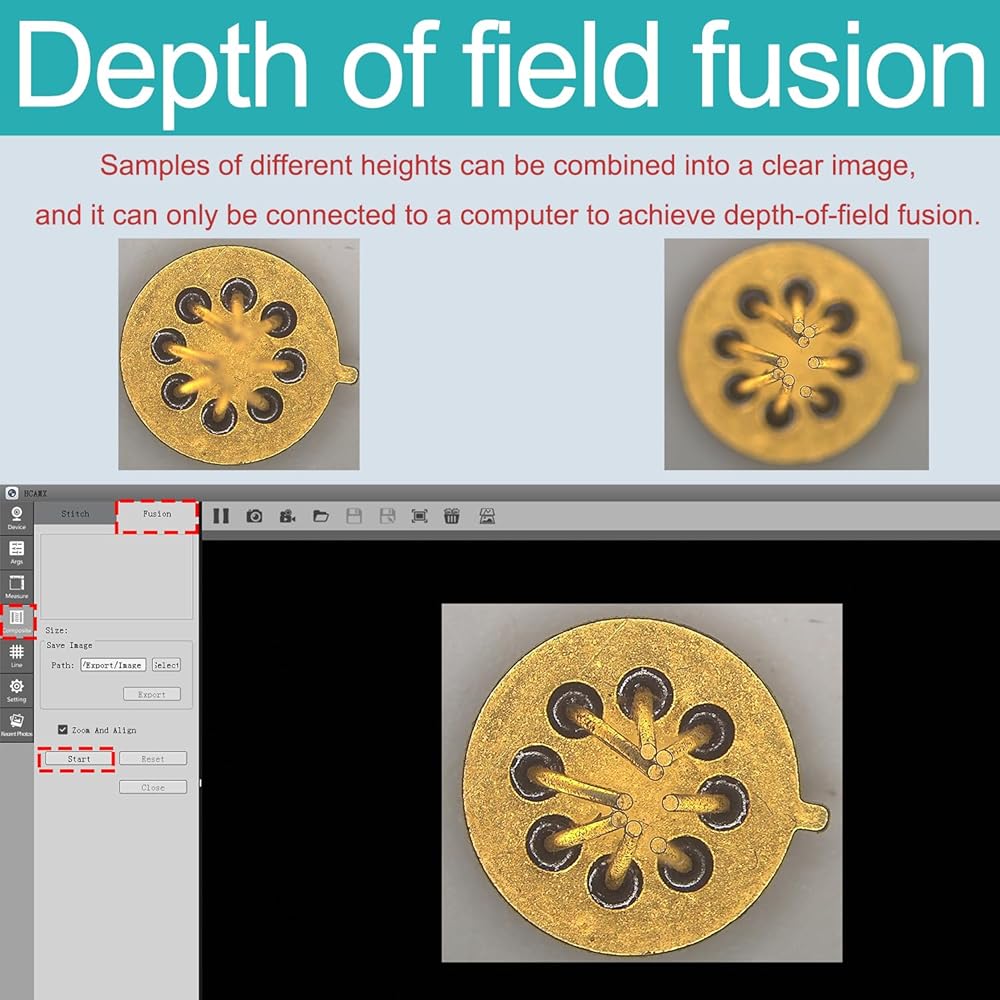

GigE/USB3.0 By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Power Supply AC100V-240V DC-12V
Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

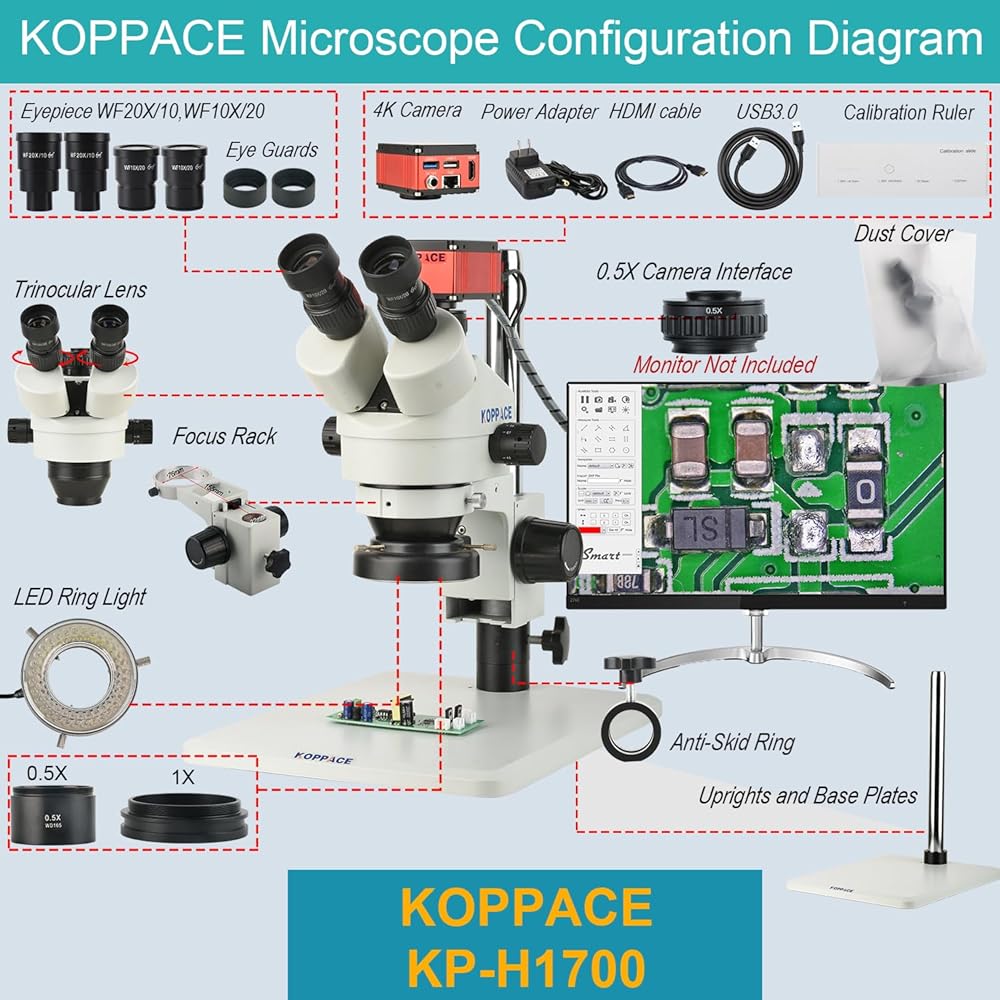

Packing List
1. Eyepiece WF10X/20 One Pair
2. Eyepiece WF20X/10 One Pair
3. Focusing Bracket *1
4. Eye Guards One Pair
5. Trinocular Zoom Lens *1
6. LED Ring Light *1
7. Uprights and Base Plates *1
8. Dust Cover *1
9. Anti-Skid Ring *1
10. Trinocular Interface 0.5X *1
11. 0.5X Auxiliary Lens *1
12. 1X Oil Proof Mirror *1
13. 4K Camera *1
14. HDMI Line *1
15. The Camera Power Adapter *1
16. Calibrating Ruler *1
17. USB 3.0 Line *1
Note
1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use.
2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse).
3. Photography,video recording,and measurement can be achieved on both the monitor and computer.
4. Simultaneous Observation Through Both the Eyepieces and the Trinocular Port.No need to Switch,Simultaneous Imaging.
5. This product does not contain a monitor.
