1. Parameters:
Current: continuous 30A, instantaneous 35A
Voltage range: 6V-12V
Minimum starting voltage: 6V
BEC type: linear
BEC output: 2A

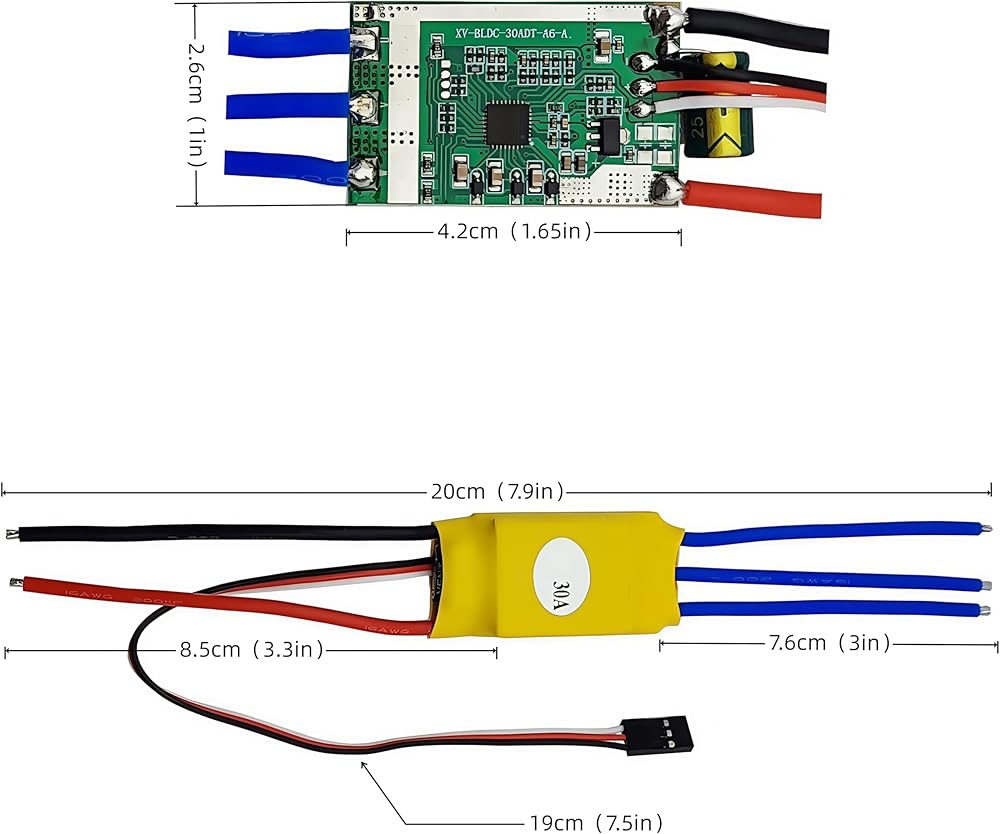

Size: 43*26*7mm
Weight: 25g
Color: yellow

Black wire length: 85mm
Red wire length: 85mm
White wire length: 190mm
Blue wire length: 76mm

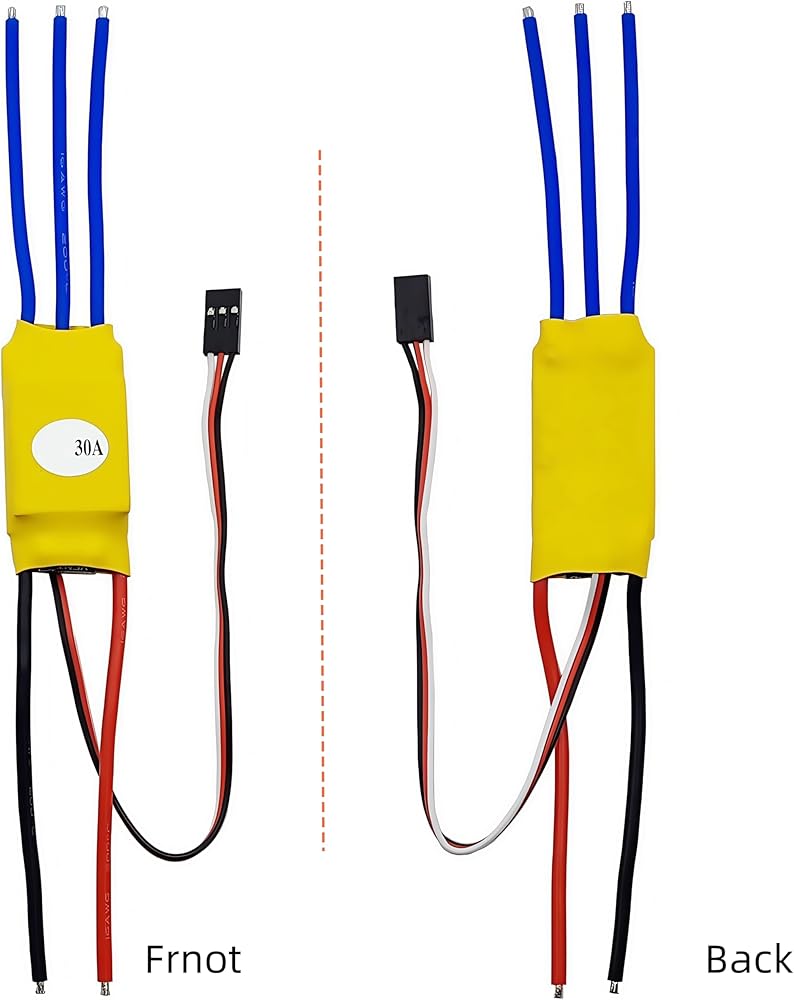

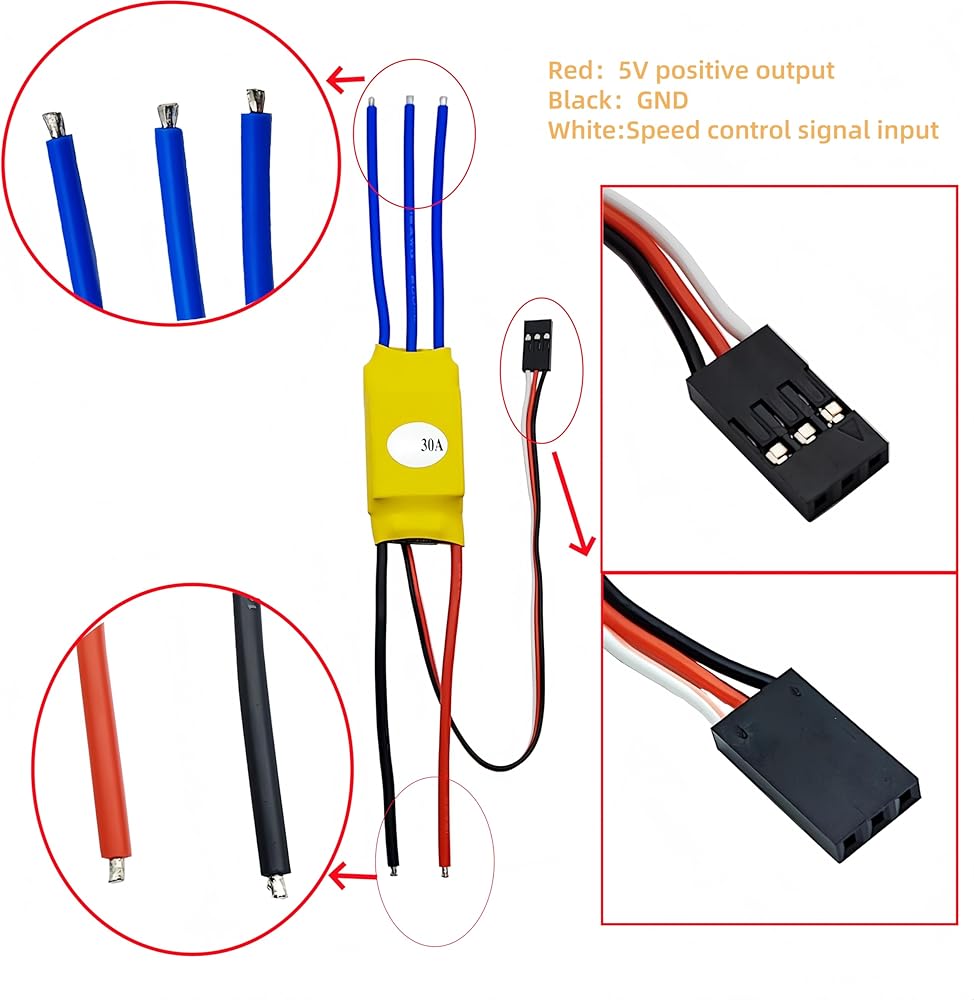

Wiring method
Black - negative
Red - positive
JR terminal White - signal
3 X Blue - connect the motor

2. Protective Function:
Automatically select 2 -3LIPO, the protection voltage is 6V and 9V
Automatic select NIMH, the protection voltage of each section is 0.8V
Safe start, if the accelerator position is not correct, it is forbidden to start
Temperature protection, stop when 110 degree appearance temperature
Out of control protection, stop after 1 second without signal.

3. Performance Description:
Upper Speed Limit: Up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole
external rotation, and 42,000rpm for 14 pole external rotation.
8KHz PWM control, use speed control curve.
Auto throttle adaptation, suitable for more remote control devices.
Using BEC, MCU separates the power supply, the work is more stable.

4. Setting Method:
(1). Turn on the transmitter and push the throttle (for FUTABA series transmitters need to select REV for the throttle channel).
(2). Connect the receiver and motor.
(3). Turn on the power supply of the ESC, and if the transmitter is normal, it will have the following sound: (If the sound ends with a long "di" sound and there is no more sound, then check the reverse setting of the throttle channel of the transmitter.)
B B means LIPO automatic protection
BB BB means NIMH NICD automatic protection
BBB BBB means brake selection

There are settings you need during the sound cycle. When you hear the syllable of the prompt sound, quickly pull the accelerator to the position.
At the same time, the motor will make a very sharp sound to confirm.
