1. Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v2.0 compliant, backward compatible with PCI-Express v1.0.
2. Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
3. Supports AHCI1.0 mode and native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug.
4. Compatible with SATA6G, 3G and 1.5G hard drives.
5. User with data cable for best results.

Specification:
Item Type:PCI-E to 3.0 Card
Model:PCE8SAT-A01
Master: Fit for 88SE92xx+JMB5XX
Interface: PCI-E 1X 2X 4X 8X 16X
Support System:Fit For 7/8//10 Fit For
Expansion Interface: 8 x Interfaces

Package List:
1 x Expansion Card

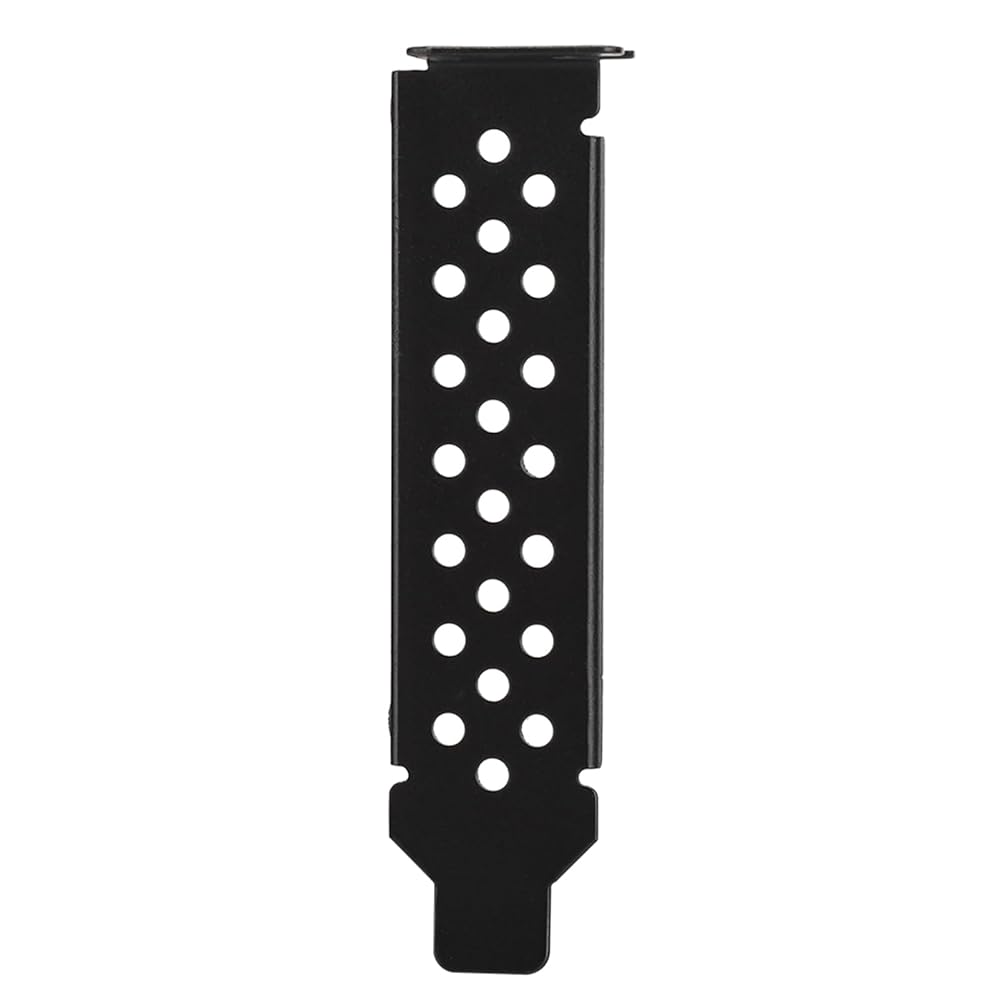

1 x Semi-High Baffle
1 x Drive disk

Note:
1. PCI‑E must have a slot above V2.0, V1.0 will not exceed 250M, PCI‑E can be X1 orX16 as long as it is V2.0 version, there is spare X16 slot directly into X16 slot on.
2. BOIS setting of the motherboard: mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high‑speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI‑E 1.0 mode, only 200‑ 250M, 2.0 mode is below 350‑400M. If you don't accept it, change the motherboard.
3. When the port is used at the same time, it will slow down. It is not suitablefor users who are pursuing speed. It is only used for the extended hard disk interface.
