Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ54
CPU: Processor N200 6M Cache, up to 3.70 GHz
Memory: 1 x SODIMM DDR5-4800 MT/s, max. 32GB RAM
Storage: 1 x CF-50P card slot, 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD, 3 choose 1.
Default is mSATA, CF/2.5 inch SATA SSD/HDD support needs to change resistance, contact us to customize

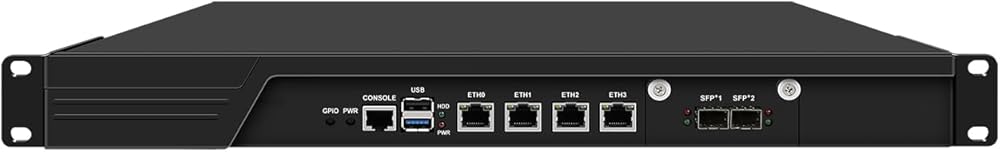

I/O Interface: GPIO, PWR, Console, USB2.0, USB 3.0, 4 x LAN, 2 x SFP+, VGA
Expansion: 1 x Mini PCIE slot for WiFi / MPE 4G, with Nano SIM slot, 1 x PCIEX8 for 4X signal

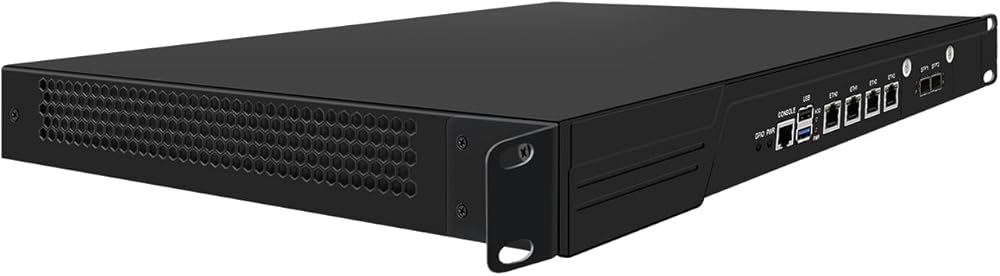

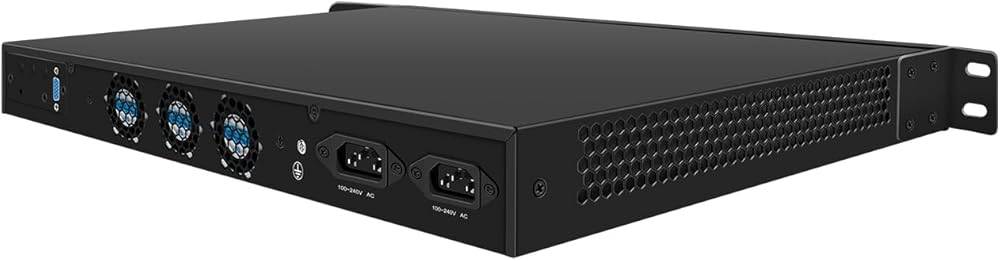

Chassis: 1u 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 4 x 2.5GbE I226-V, 2 x SFP+ 82599ES 10 Gigabit
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is around 2gb
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 4.8Gbps
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling

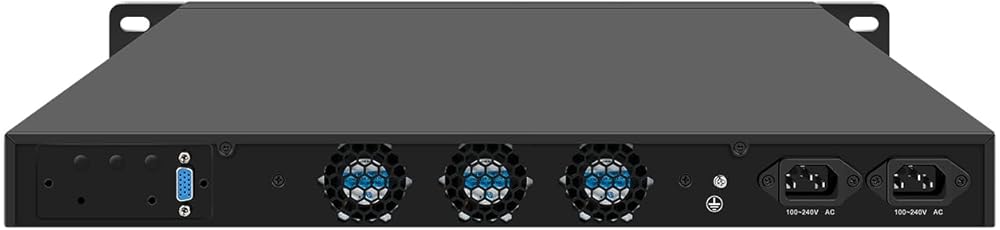

Power: 2 x 65W 12V 5.42A, 90~264VAC, 47~63Hz, with a redundancy power supply
Size: 440 x 322 x 44mm
Weight: 6.5kgs
Packing List: HUNSN RJ54 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U Rackable, 9-15 inch rackable, all are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
