Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ66
CPU: 2 x Xeon Processor E5-2697 v4 45M Cache, 2.30 GHz
AES-NI Supported: Yes
Chipeset: PCH C612
Memory: 7 x ECC/ECC-REG DIMM DDR41600/1866/2133/2400 MAX 256G, each slot supports up to 32G,
a single CPU supports up to 128G, dual CPUs support up to 256G memory
Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD

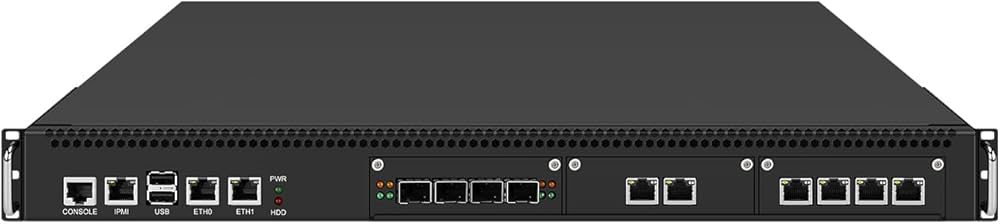

I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 6 x I226-V LAN, VGA Aspeed AST2400,
Power Switch, AC Socket
Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 1 x RTL-8211 E IPMI, 2 x I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 6 x 2.5GbE 226-V
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1Gbps
Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 800W 100-240V 50Hz/60Hz
Size: 440 x 600 x 45mm
Weight: 8.7kgs
Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
